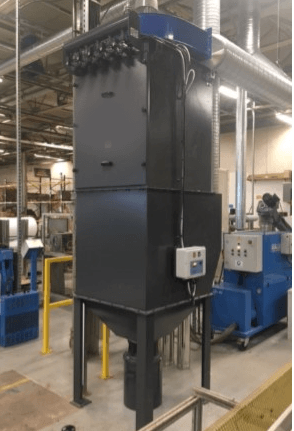

FXBH Series Baghouse Reverse Pulse Jet Filter Units
Our FXB series of baghouse reverse pulse jet dust collectors are designed for use on more continuous applications where the extraction system can not be shut down during the process for filter cleaning. Designed to specific application requirements the FXB series of filter units are extensively used as part of process filtration and hygiene ventilation in a range of industries and applications.
Standard Features:
• Filter Media Range from 144m² to 1344m²
•
Integral Fan Range from 7.5Kw to 30Kw
• Inlet Static Pressures from 100 to 5000 Pascals’
• Fabricated from 2 & 3mm Mild Steel CR Shee
• 5 Coat Gloss Enamel Paint Finish
• Pulse Control Package.
Optional Features:
• Inlet & Outlet Duct Transitions
•Inlet Static Pressures from 1,750 to 5,000 Pascals
• Dirty Air Inlet Spark Arrestor
• Fabricated from 304L – 316L Stainless Steel.
• Antistatic/Oleophobic/Acrylic/Teflon /Glass & High Temperature Filter Media options.
• Secondary HEPA Filter Section
• Rotary Valve Waste Arrangements For Connection to IBC.
• Large Capacity Waste Collection Bin
• ATEX - Internal / External Zone 21 Compliant
• ATEX II 3D Ex tc IIIC T125° Drive Motors
• ATEX - Rear Mounted Explosion Relief Panel
• ATEX - Flammable Airstreams / Flameproof Units

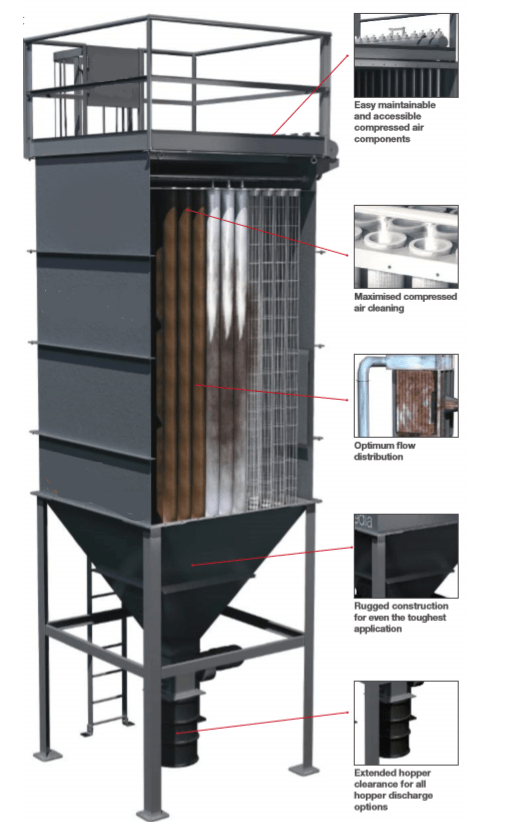

The compact modular design allows modules to be fabricated in sections for ease of site assembly, installation and ease of access for the completion of filter changes, routine inspections and servicing.
The overall design and filter bag arrangement allows for minimal bag cleaning, lower power consumption and lower compressed air usage. All of this combined allows for the lowest maintenance, replacement and operating costs.
The FXB series dust filter is capable of handling hot or aggressive dusts through a choice of high performance medias suited to individual processes and applications and can be used in arduous applications such as mining & quarrying, metal melting, casting & moulding and can be used alongside kilns, dryers and boilers.
