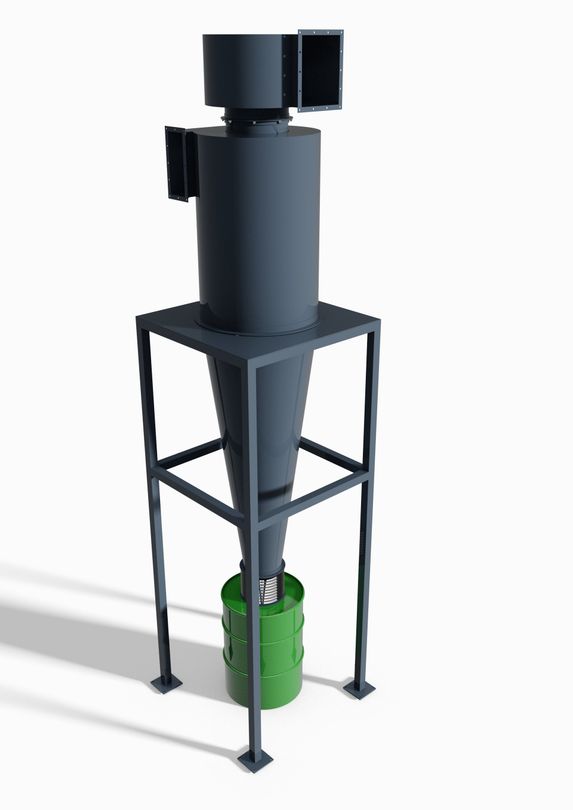

Cyclone Pre - Separators
Our Cyclone Pre-separators can be used in all applications where the extracted material is coarse or voluminous. These can be placed in the actual workplace for separate handling or recovery of the extracted material, or centrally.
Our Cyclone Pre-separators are used to reduce the dust load reaching the final filter, or as protective devices to remove large hot particles from the air stream to prevent damage to the filter material.
We offer a range of options to suit a specific process.
Benefits of using a Cyclone
Low initial cost
Low operating expenses
No moving internal parts
Minimal space requirements
Dust and debris are pulled into the tangential inlet at high velocities, forcing material against the walls in a cyclonic motion. Larger particles slide down into the hopper while smaller or fine dust exits out the other side.
Further dust separation can be provided downstream with a fabric filter dust collector.
Separation efficiencies depend on the centrifugal force applied upon the dust (particles with larger mass being subject to greater force). Velocity, cyclone curvature profile, and the particulate mass combined with the time that the force is applied against the particles, characterizes performance.
