Shaker Filter Units
FX Series Auto Shaker Dust Filter Units
Our FX Series dust collectors are designed to be used with extraction systems, on a variety of dusts from processes that are used intermittently, offering an effective solution to dust extraction problems.

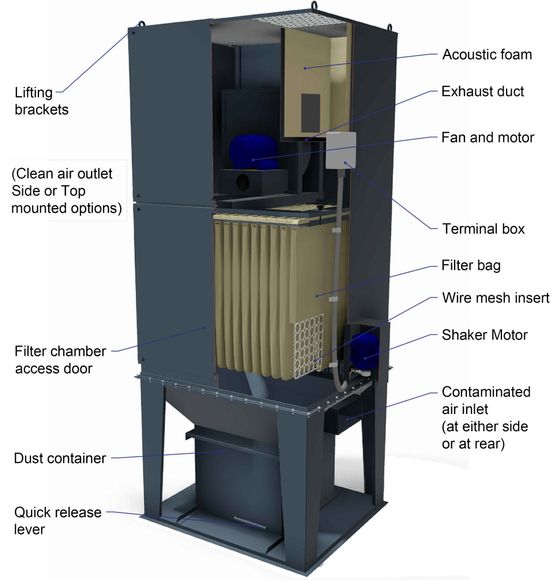

Contaminated air from the dust generation source is drawn through the inlet to the collector by the fan. Initially some pre-separation takes place as heavier dust particles lose momentum and fall into the dust container or hopper. Finer dusts are carried up to the filter elements where they are retained on the outer surface of the filter fabric. The cleaned air is then passed through the filter fabric into the fan chamber and discharged.
At the end of the production period the extraction is switched off at the control panel. A timer instigates a delay to allow extraction to come to rest, followed by a 30 – 60 second shaker motor clean cycle, which mechanically oscillates the filter sleeves dislodging the excessive dust burden, which falls under gravity into the waste bin.
This process is designed to reduce the pressure loss across the filter media there by maintain extraction volume rates.
There are a number of configurations of the Filtex range which are tailored to suit the requirements of any particular collection process.
Standard Features
• Filter Media Range from 7m² to 120m²
• Integral Fan Range from 0.75Kw to 15Kw
• Inlet Static Pressures from 500 to 1,750 Pascals’
• Fabricated from 2mm Mild Steel CR Sheet
• Polyester Needlefelt Multi Pocket Filters
• Quick Release Cam Lock Waste Collection Bin
• 5 Coat Gloss Enamel Paint Finish
• Free Issue IP65 Fully Automatic Control Panel
Optional Features
• Inlet & Outlet Duct Transitions
• Inlet Static Pressures from 1,750 to 5,000 Pascals’
• Pre-Separator Inlet Cyclone
• Dirty Air Inlet Spark Arrestor
• Fabricated from 304L – 316L Stainless Steel
• Twin / Triple Bin Arrangements
• Antistatic/Oleophobic/High Temperature Filter Media
• Secondary HEPA Filter Section
• Silo Venting Style Unit
• Waste Bin Balance Kit
• Large Capacity Waste Collection Bin
• ATEX - Internal / External Zone 21 Compliant
• ATEX II 3D Ex tc IIIC T125° Drive Motors
• ATEX - Rear Mounted Explosion Relief Panel
• ATEX - Flammable Airstreams / Flameproof Units

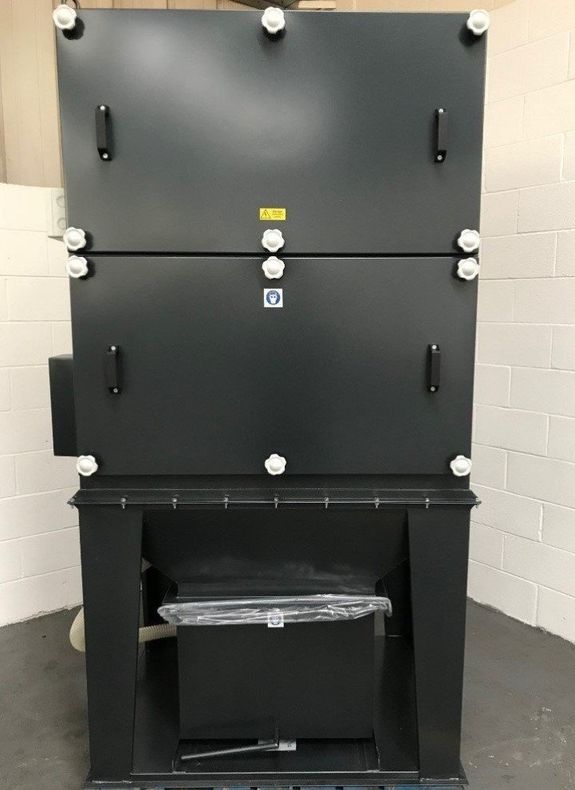

FX Series FX294H Bin Balance
It is important to consider the explosibility of the dust being handled before deciding on a specific filter unit. Our engineers can provide assistance in determining the size of the filter unit. Please contact us if you require any support.
